1、 产品名称

  1. Product Name

  超柔矿物绝缘防火电缆(RTXMY)

  Super flexible mineral insulated fireproof cable

  2、 现有重点、高精尖产品介绍

  2. Introduction of existing major and high-end products

  超柔矿物绝缘防火电缆采用耐火、无污染、高弹性、耐高温耐火绝缘体绝缘材料，该材料在火灾情况下，转化为无机SiO2陶瓷壳体，起到很好的阻燃、防火、隔水及抗震的作用;电缆采用绞合铜导体，不锈钢连锁护套或非金属高阻燃护套结构，增加了电缆的柔软性，使电缆的弯曲半径更小。这些材料一般都具有1400℃以上的较高熔点，因此即使在1050℃高温条件下防火电缆也能正常发挥输电功能，且能通过BS 6387的C\W\Z试验，是一种真正意义上的防火电缆。

  The super flexible mineral insulated fireproof cable adopts with fire-resistant, pollution-free, high-temperature and fire-resistant insulated materials which could be transformed into inorganic SiO2 ceramic shell in case of fire, to play a good role in flame retardancy, fire prevention, water separation and earthquake resistance. Stranded copper conductor, stainless steel interlocking sheath or nonmetal high flame-retardant sheath structure are used in the cable, which improves the flexibility of the cable and reduces the bending radius of the cable. These materials generally have a high melting point more than 1400℃. Hence, the fireproof cable can operate the power transmission normally even under the high temperature of 1050℃, and it could pass the C\W\Z test of BS 6387, which is a real fireproof cable.

  3、 产品执行标准

  3. Standards of production operation

  企业标准：Q/320584PDH089—2019《额定电压0.6/1kV超柔矿物绝缘防火电缆》

  Enterprise standard: Q/320584PDH089—2019 “Super flexible mineral insulated fireproof cable with nominal voltage of 0.6/1kv”

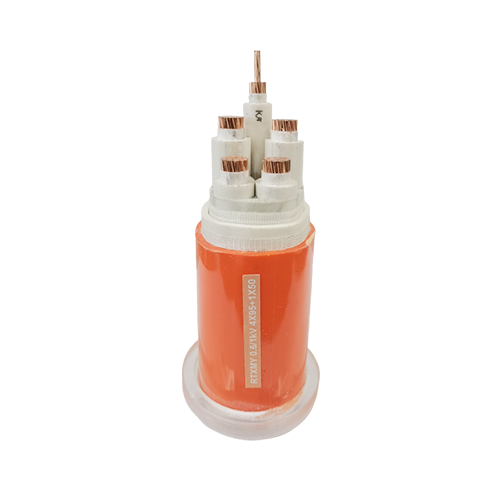

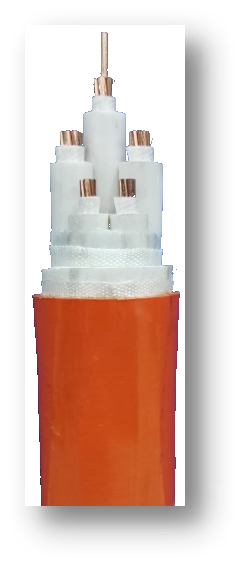

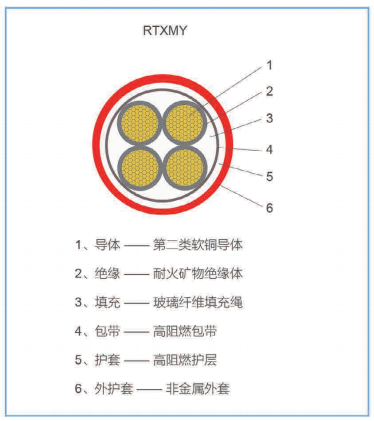

  4、 重点产品照片及产品结构示意图

  4. Photos of major products and diagram of product structure

  5、 基本原理

  5. Basic principle

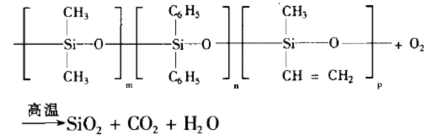

  绝缘采用耐火绝缘体材料。在火焰烧蚀下，绝缘材料逐渐分解，生成二氧化硅为主体结构的陶瓷状无机绝缘体，附着在导体表面，这种绝缘体具有隔热、绝缘、耐火功能和较大的机械强度，能够确保电缆在火焰并附加机械冲击和喷淋状况下保持一段时间正常工作。

  The fire-retardant insulation materials are adopted for insulation. The insulating materials decompose gradually under combustion to form a ceramic inorganic insulator with the main structure of silicon dioxide attached to the surface of the conductor. This kind of insulator has functions of heat-retardancy, insulation, fire-resistance and high mechanical strength, which ensures that the cable can operate normally for a while under the condition of flame and additional mechanical shock and spray.

  6、 材料特性

  6. Characteristics of materials

  绝缘层采用耐火绝缘体材料，在常温下具有普通橡胶、硅橡胶及热塑性弹性体一样的优异性能，属于无卤、无毒、无味环保型产品;同时在火灾、高温的情况下，迅速生成陶瓷状坚硬、完整的硬壳，该壳体能够在遇水喷淋、震动等情况下也不会破损，这是耐火绝缘体区别于目前所有高分子材料的“革命性”特点。

  The insulating layer adopts fire-resistant insulator material with excellent performance as ordinary rubber, silicon rubber and thermoplastic elastomer at room temperature. It belongs to halogen-free, non-toxic, tasteless and environmental protection products. Meanwhile, the ceramic hard and complete shell can be formed rapidly in case of fire and high temperature. The shell cannot be damaged in case of water spray and vibration. This is the “revolutionary” characteristic of the fire-resistance insulator that is different from that of all polymer materials at present.

  7、 性能优势

  7. Performance advantages

  a耐火等级可满足英国BS6387中规定的单纯耐火C(950℃受火180min后线路保持完整)、耐火防水W(650℃受火15min，洒水和继续受火15min后，线路保持完整性)、耐火耐机械冲击Z(950℃受火和冲击15min后，线路保持完整性)试验。

  A. The fire-resistant level could meet the requirements of BS6387 in British, including the simple fire resistance C (the line remains intact after being exposed to fire at 950℃ for 180min), fire-resistance and waterproof W (the line remains intact after being exposed to fire at 650℃ for 15min, water spraying and then exposed to fire for 15 min), fire resistance and mechanical impact Z (the line remains intact after being exposed to fire at 950℃ and impact for 15 min).

  b该电缆绝缘采用柔软而有弹性的耐火矿物绝缘体，增加了绝缘线芯的柔性，使整个电缆的弯曲性能更好，完全满足施工的要求。

  B. The cable adopts soft and flexible fire-resistant mineral insulator for insulation, which increases the flexibility of the insulating core and improve the bending performance of the cable. It meets the requirements of construction completely.

  c耐压等级高，该电缆额定电压是0.6/1kV，试验电压3.5kV，5min，高于其它防火电缆(500V或750V)。

  C. The rated voltage of the cable is 0.6/1kV, the test voltage is 3.5 KV for 5 min, which is higher than other fireproof cables (500V or 750V).

  d安装敷设方便，由于该电缆柔性好，便于弯曲，可实现中间无接头。

  D. It is convenient to installation due to the good flexibility of the cable, which is easy to bend and could realize that there is no joint in the middle.

  e经济性好，超柔矿物绝缘防火电缆由于制作工艺先进，安装简单，在同等条件下其综合费用比YTTW和BTTZ电缆明显降低产品

  E. The comprehensive costs of super flexible mineral insulated fireproof cable is significantly lower than that of YTTW and BTTZ under the same conditions due to the advanced manufacturing techniques and simple installation.

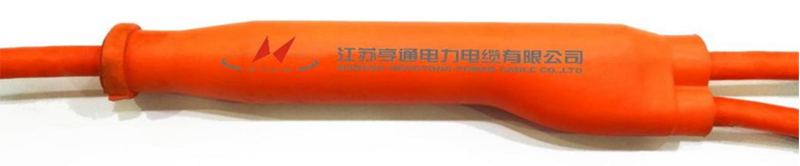

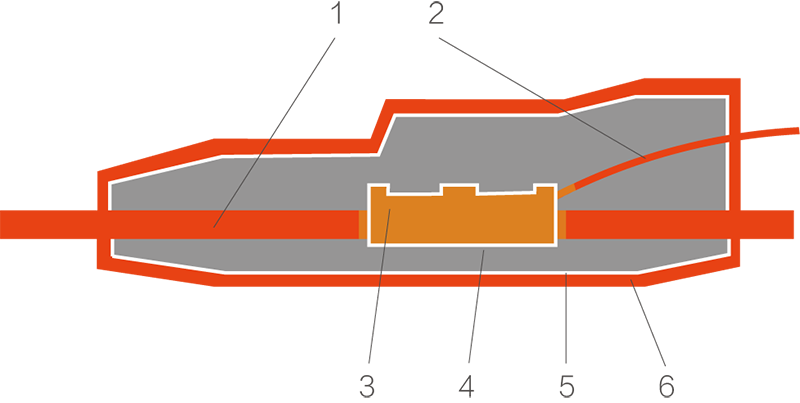

  8、 预分支解决方案
